23 Gauge Bent Dispensing Tip 1 Inch Long Tube
Precision stainless steel burr-free tube to moulded colour coded polypropylene hub with double-helix luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and other liquids. A bent stainless shaft length of 1.0 Inch. UV filter hub protects UV cure adhesives.

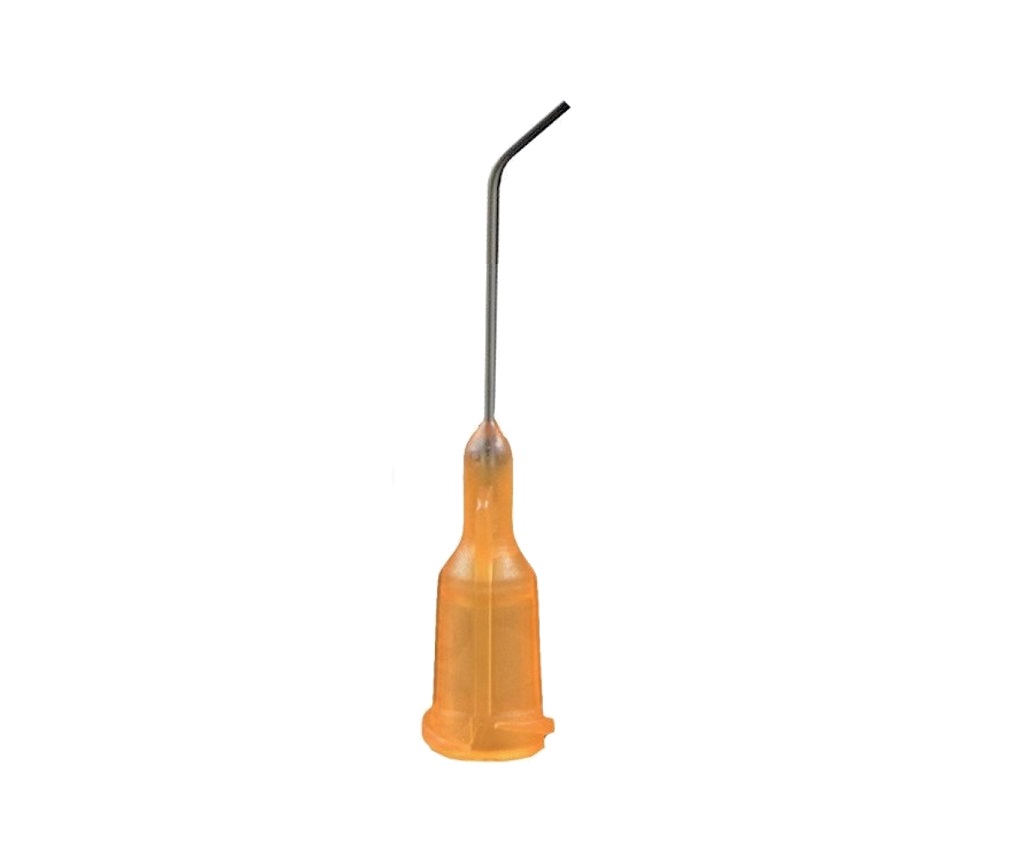

AD72310045 Angled Bent 45 Dispensing Tip 1" Long

The TE needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Supplied in sealed packs.

Tips are colour coded for gauge size. The tip features a tapered internal hub design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. These items ship direct from stock.

Use with luer lock and luer slip syringes, air-powered dispensers, syringe barrels, bottles, fittings and dispensing shot valves. Silicone-free plastics ensure sensitive adhesives applied with these parts will not become contaminated during use.

All products shipped are in sealed boxes or packs that include label with batch codes.

Specifications:
Materials: Polypro Hub, Stainless Steel Tube
Colour: Orange Hub
Tip Tube Length: 25.40mm (1.0 Inch)
Tip Tube ID: 0.33mm (0.013 Inch)
Tip Tube OD: 0.64mm (0.024 Inch)
Tube Type: Blunt End
Tube Assembly: UV Bonded
Connection Type: Luer Lock

Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: 45 Degree
Description: Angled Bent Tip
Features: Silicone-Free, Industrial Grade

Pack Sizes: 50, 500 or 1000 pcs
MPN: TE72310045
Manufacturer: ADL
Commodity Tariff Code: 90289090
Lead Time: Ships Within 24 Hours

Suitable for ...
Make dots of adhesives General Adhesives & Glues
Make beads of adhesives Flowable Silicones
Potting of components Epoxies & Resins
Sealing of components Threadlocker Adhesives
Dispense lubricants and greases Greases & Lubricants
UV Cure Adhesives
Solder Pastes & Fluxes
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

TE Series Bent Precision Dispensing Tips
More Info Part Code

Description

Price GBP Add
AD72310045
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 25.4mm (1.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000



More Info Part Code

Description

Price GBP Add
TE72305045
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 12.7mm (0.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
AD72315045
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 38.1mm (1.5 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TE72305090
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 12.7mm (0.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
AD72310090
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 25.4mm (1.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
AD72315090
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 38.1mm (1.5 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

Alternative 23GA Dispensing Tips
More Info Part Code

Description

Price GBP Add
TE723025PK
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 6.35mm (0.25 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TE723050PK
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 12.7mm (0.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TE723100PK
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 25.4mm (1.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TE723150PK
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 38.1mm (1.5 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TE723200PK
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 50.8mm (2.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/50

More Info Part Code

Description

Price GBP Add
SE423050PK
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 12.7mm (0.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/1000

More Info Part Code

Description

Price GBP Add
SE423100PK
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 25.4mm (1.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/1000

More Info Part Code

Description

Price GBP Add
TS23-1/2
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Blue
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 12.7mm (0.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TS23-1
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Blue
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 25.4mm (1.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TES23-1/2
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 12.7mm (0.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TES23-1
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Stainless Steel
Colour: Orange
Inner Diameter: 0.33mm (0.013 Inch)
Outer Diameter: 0.64mm (0.024 Inch)
Tube Length: 25.4mm (1.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/500
   pk/1000

More Info Part Code

Description

Price GBP Add
TF23
Luer Tips
Dispensing
Catalogue
Material: Polypro/ Teflon PTFE
Colour: Blue
Inner Diameter: 0.66mm (0.026 Inch)
Outer Diameter: 0.96mm (0.038 Inch)
Tube Length: 12.7mm (0.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/50
   pk/1000

More Info Part Code

Description

Price GBP Add
TS23SS-1/4
Luer Tips
Dispensing
Catalogue
Material: Brass/ Stainless Steel
Colour: Silver
Inner Diameter: 0.34mm (0.013 Inch)
Outer Diameter: 0.63mm (0.025 Inch)
Tube Length: 6.35mm (0.25 Inch)
Lead Time: Ships Within 24 Hours
   pk/10

More Info Part Code

Description

Price GBP Add
TS23SS-1/2
Luer Tips
Dispensing
Catalogue
Material: Brass/ Stainless Steel
Colour: Silver
Inner Diameter: 0.34mm (0.013 Inch)
Outer Diameter: 0.63mm (0.025 Inch)
Tube Length: 12.7mm (0.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/10

More Info Part Code

Description

Price GBP Add
TS23SS-1
Luer Tips
Dispensing
Catalogue
Material: Brass/ Stainless Steel
Colour: Silver
Inner Diameter: 0.34mm (0.013 Inch)
Outer Diameter: 0.63mm (0.025 Inch)
Tube Length: 25.4mm (1.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/10

More Info Part Code

Description

Price GBP Add
TS23SS-15
Luer Tips
Dispensing
Catalogue
Material: Brass/ Stainless Steel
Colour: Silver
Inner Diameter: 0.34mm (0.013 Inch)
Outer Diameter: 0.63mm (0.025 Inch)
Tube Length: 38.1mm (1.50 Inch)
Lead Time: Ships Within 24 Hours
   pk/10

More Info Part Code

Description

Price GBP Add
TS23SS-2
Luer Tips
Dispensing
Catalogue
Material: Brass/ Stainless Steel
Colour: Silver
Inner Diameter: 0.34mm (0.013 Inch)
Outer Diameter: 0.63mm (0.025 Inch)
Tube Length: 50.8mm (2.0 Inch)
Lead Time: Ships Within 24 Hours
   pk/10

More Info Part Code

Description

Price GBP Add
MMT003
Luer Tips
Dispensing
Catalogue
Material: Stainless Steel
Colour: Silver
Type: Micro Metal Tapered Tip
Inner Diameter: 0.30mm (0.012 Inch)
Tip Length: 18.25mm (0.718 Inch)
Lead Time: Ships Within 24 Hours
   pk/1

More Info Part Code

Description

Price GBP Add
5901005
Luer Tips
Dispensing
Catalogue
Material: Stainless Steel, PE
Colour: Purple
Type: Micro Metal Tapered Tip
Inner Diameter: 0.56mm (0.022 Inch)
Tip Length: 18.25mm (0.718 Inch)
Lead Time: Ships Within 72 Hours
   pk/8

More Info Part Code

Description

Price GBP Add
MT23-PBN
Luer Tips
Dispensing
Catalogue
Material: Stainless Steel, PE
Colour: Purple
Type: Micro Metal Tapered Tip
Inner Diameter: 0.56mm (0.022 Inch)
Tip Length: 18.25mm (0.718 Inch)
Lead Time: Ships Within 72 Hours
   pk/1

More Info Part Code

Description

Price GBP Add
AD-1001-23BTS
Luer Tips
Dispensing
Catalogue
Material: Nylon/ Stainless Steel
Colour: Orange/ Silver
Type: Soft Bristle Brush Tip
Inner Diameter: 0.33mm (0.013 Inch)
Bristle Width: 2mm
Lead Time: Ships Within 24 Hours
   pk/10

More Info Part Code

Description

Price GBP Add
AD-1001-23BT
Luer Tips
Dispensing
Catalogue
Material: Nylon/ Stainless Steel
Colour: Orange/ Silver
Type: Stiff Bristle Brush Tip
Inner Diameter: 0.33mm (0.013 Inch)
Bristle Width: 2mm
Lead Time: Ships Within 24 Hours
   pk/10

Tip Pages



Accessories
  Syringe Barrels. Syringes and barrels for use with air powered dispensers as well as manual operation. Luer lock or luer slip tip attachment. In a range of colours, sizes and styles.

Dispensing luer lock tips precision  Luer Lock Tips. Select a wide range of precision dispensing tips. Use general purpose for flowable materials. Use smooth flow tapered tips for high viscosity materials.
Dispensing Products
Techcon Techkit cartridges Syringe barrels Dispensing tips
Cartridges
Plungers
Plastic
Nozzles
Techkit
Cartridges
Syringes
Consumables
Luer Lock
Dispensing Tips

15 gauge angled bend tip luer lock


  COMPANY INFORMATION SUPPORT CUSTOMER SERVICE
  About Us Solutions Carriage
  Shipping & Returns FAQ's Terms & Conditions
  Privacy Site Map Help
  Contact Us Assist Accounts


Air-Powered Dispensers * Industrial Dispensing Components * Precision Dispense Valve Systems * Bench Robots

Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles




Prices are in GBP pounds.  Vat is charged on all UK orders. We provide VAT invoices with all transactions. Vat is not charged on any orders placed with us that ship outside the UK and EU. No VAT is charged for any orders placed for shipment to the EU only if a valid company VAT number is provided to us at time of order or prior to shipping.  Products are covered by a 12-month warranty against all faults and malfunction.  All orders placed online are encrypted for total safety and security.  Additional encryption now protects all of the web pages on this site. Please read our privacy agreement for details of how we conform to GDRP.  We can also process any phone or fax payments by credit and debit cards.  Please contact our accounts department if you would like to apply for a 30 day credit account with us.

Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.

Copyright 2020 Adhesive Dispensing Ltd. All rights reserved.



  Literature
  Full Catalogue
  Dispensing Catalogue
  Syringe Barrels
  Cartridges & Nozzles
  Dispense Tips
  Dispense Guns
  Dual Air Guns
  Dual Cartridge & Mixers

  Information
  Tip Selector Guide
  Safety Information
  Viscosities Chart
  ISO9001:2015 Certificate
  ROHS & REACH



  Contact Us
  Equipment Recommendations
  Request a Quote
  Technical Support
  Applicator Assist

  Industrial Grade Safe


All products are safe for use for industrial applications. The components are leak-free and supplied in sealed packaging to prevent contamination.



  Silicone Free Products


Products including air powered barrels, cartridges, nozzles, luer tips, fluid lines, tubing, caps and seals - are certified silicone free to prevent contamination of sensitive adhesives dispensed from them.
