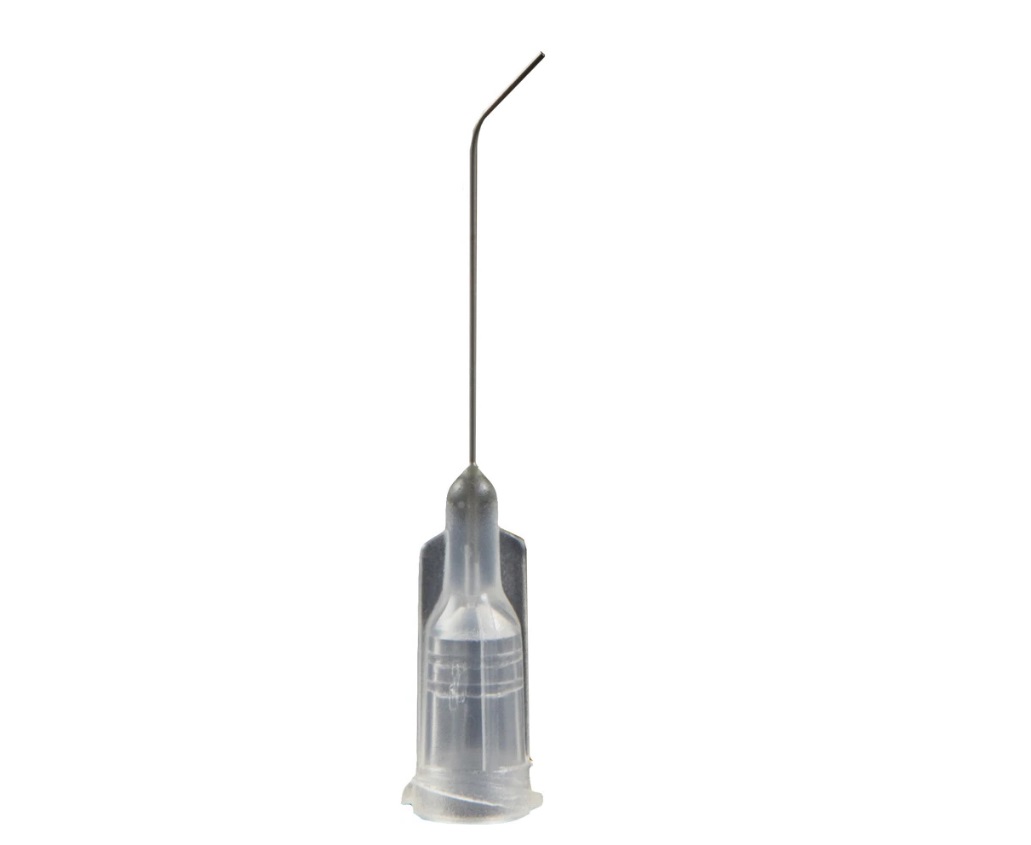

27 Gauge Dispensing Tip 1.0 Inch Long 45 Degree Bend

High quality stainless steel burr-free tube to moulded colour coded polypropylene hub with double-helix luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and others. A precision cut tube stainless shaft length of 1.0 Inch (25.4mm).

AD72710045 Tip Angled Bent 1" Long


The TE needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow.

Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Supplied in sealed packs. Use these tips for applying most liquids for high precision controlled dispensing.

Tips are colour coded for gauge size. The tip features a tapered internal hub design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


AD72710045 Tip 1.0 Inch Long

Excludes Carriage.
Lead Time:
Ships Within 24 Hours

Summary: Angled dispensing nozzle tips blunt end stainless steel tube to poypro hub.

Item Qty Price GBP Add
AD72710045PK 50   pack
AD72710045P 500   pack
AD72710045 100   pack

Specifications

Materials: Polypro Hub, Stainless Steel Tube
Hub Colour: Clear
Tip Tube Length: 25.4mm (1.0 Inch)
Tip Tube ID: 0.20mm (0.010 Inch)
Tip Tube OD: 0.41mm (0.020 Inch)
Connection Type: Double Helix Luer Lock

Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Angled
Description: General Purpose Tip
Features: Silicone-Free, Industrial Grade

Pack Sizes: 50, 500 or 1000
MPN: TE727100B45
Commodity Code: 90289090


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates. The items listed on this page are held in stock.

Typical Applications:- Deposits of solder paste or solder flux, grease to bearings, potting components with epoxies, RTV to edge seams, silicone shots to bond products, gasket sealant repair, aircraft maintenance work, braze pastes, solvents, threadlockers, general adhesive applications.
