The TE needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Supplied in sealed packs.

Tips are colour coded for gauge size. The tip features a tapered internal hub design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. These items ship direct from stock.

Use with luer lock and luer slip syringes, air-powered dispensers, syringe barrels, bottles, fittings and dispensing shot valves. Silicone-free plastics ensure sensitive adhesives applied with these parts will not become contaminated during use.

All products shipped are in sealed boxes or packs that include label with batch codes.

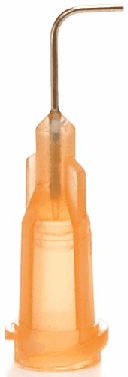

Specifications: Materials: Polypro Hub, Stainless Steel Tube Colour: Orange Hub Tip Tube Length: 12.70mm (0.50 Inch) Tip Tube ID: 0.33mm (0.013 Inch) Tip Tube OD: 0.64mm (0.024 Inch) Tube Type: Blunt End Tube Assembly: UV Bonded Connection Type: Luer Lock Maximum Pressure: 100 PSI (6.89 Bar) Flow Pattern: 90 Degree Description: Angled Bent Tip Features: Silicone-Free, Industrial Grade Pack Sizes: 50, 500 or 1000 pcs MPN: AD72305090 Manufacturer: ADL Commodity Tariff Code: 90289090 Lead Time: Ships Within 24 Hours   Suitable for ... General Adhesives & Glues Flowable Silicones Epoxies & Resins Threadlocker Adhesives Greases & Lubricants UV Cure Adhesives Solder Pastes & Fluxes

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
